Marine Airbag Manufacturer Inflatable Barge Launching Rubber Airbag Ship Launching Airbag
Qingdao Florescence Co., Ltd
Lies in Qingdao, a beautiful coastal city with red tiling and green trees, blue sea and clear sky, Qingdao Florescence Co., Ltd is a high-tech enterprise integrated with manufacturing, research and innovation, technical services, specialized in manufacturing marine products, such as marine rubber fender, marine airbag, navigation mark and marine buoy. All products get ISO 9001 certificate and quality authentication from CCS, BV, GL, ABS, LG, etc.
Marine Rubber Airbag Application

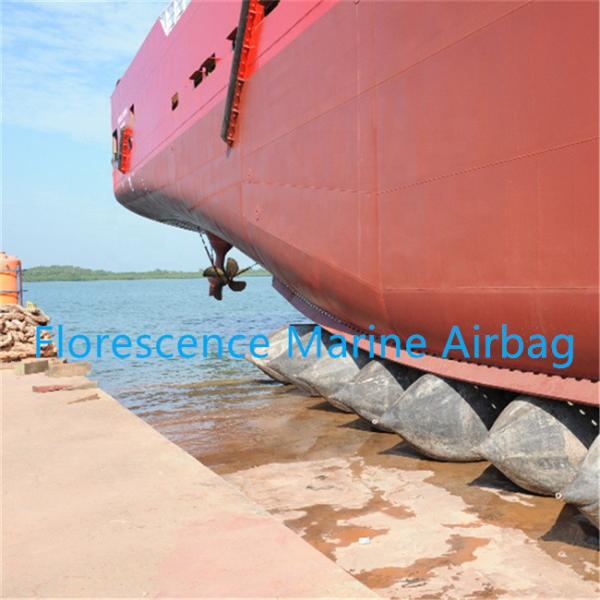

1 Ship Launching & Upgrading
With more than 20 years development in China, marine rubber airbag is proved to be the most reliable and stable technique for ship launching & upgrading. It is applicable from tons of flat board to ten thousand tons of huge ship. Meanwhile, marine rubber airbag is also widely acknowledged by foreign dockyards, shipyards, port/harbour construction companies. Ship launching & upgrading technique with marine rubber airbag is also highly promoted in the markets, such as America, Europe, Southeast Asia.
2 Weight lifting & moving
Marine rubber airbags could be applied to caisson lifting, launching, moving and transporting in port constructing projects.
3 Buoyancy Aid & Salvage
Because marine rubber airbag has buoyancy force and load-bearing capacity, it is also widely used in sunken vessel salvage and Buoyancy Aid.
Our company airbag structure are consist of the outer rubber + synthetic cord reinforced rubber layers.
Its shape characteristics: central body cylindrical + tapered on both ends.
Cord layers: 3-10 layers.
High precision engineering using 3-strand cords with great tensile strength.
Made from NEW industry leading quality rubber.
Assurance of true number of layers.
High-performance quality and above-industry-standard layer thickness.
Industry-grade air inlet valve
Industrial pipe fittings
High precision industrial pressure gauge
Heavy-duty use air tightness swivel fittings / end-seal ring
Industrial gasket seal
User friendly MAX repair kit with high-performance rubber layer and durable tensile strength cord layer
Saving the investment of shipyard construction
Simple operation, saving of labor and work hours
Environment friendly
High pressure safety explosion-proof launching airbag
(1). Using high quality raw material
(2). The unique whole winding process
(3). The size and structure of air bag
| diameter of airbag | 0.5m-2.5m |
| length | 5-28m |
| layers | 4-12 layers |
Other models c an also be produced according to customer requirements.
How to ensure success, rather than a catastrophic and embarrassing failure
1) Identifying the type, size & weight of the vessel before you launch.
2) Type, length and number of airbags have to be chosen carefully.
3) Ground structure/ slipway has to be free of sharp objects and preferably, a small degree slope.
4) Slipway Winch to provide pulling force needed.
5) Determine the accessories needed for ship launching using airbags.
6) Determine whether a slow launch or quick launch.
7) Rubber inflatables are versatile
8) Cost advantage due to flexibility.
For price quotes – please answer the following questions:
- Type of vessel?
- LOA (length) of ship?
- Width of vessel?
- Vessel’s actual launched weight?
- What is the vessel’s DWT?
- Type of ground ship is built on? (Dirt, concrete, etc.)
- Depth where the ship first enters the water?
- What’s the angle degree of slipway? (Land)
- Please provide the low/high tide schedule at site.
- The working height? (The block stand height)
- Distance from bottom of propeller to the water level?
- Distance from back of vessel to the water entry point?
